Specification Summary:
Bolton Gate Company, the acknowledged leader in the field of rolling fire door technology, are pleased to offer the Fibreroll range of fire rated curtains.

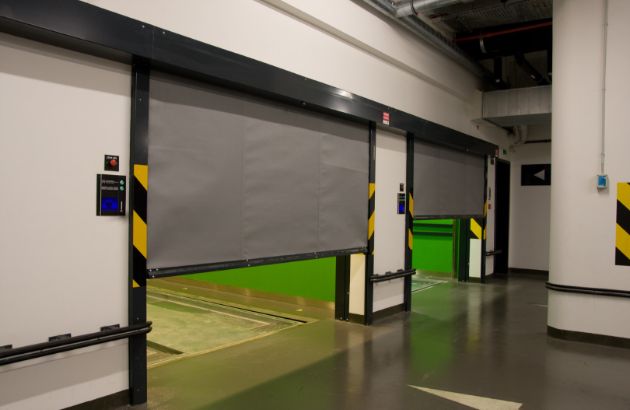

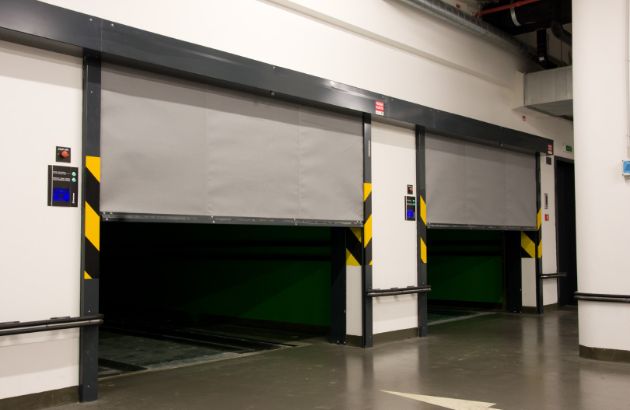

These fire curtains are specifically designed to provide smoke tight, fire compartmentation and a protected means of escape all within a compact, aesthetically pleasing yet robust and reliable system.
The Fibreroll S benefits from additional design elements which integrate a series of seals resulting in a Sa smoke tight rating. The woven glass fabric with stainless steel wire reinforcement provides not only a two-hour fire integrity between fire compartments but also a reduction in radiated heat to such a large extent that it meets the requirements for a rating of EW30.
Smoke tightness: Sa classification
Resistance to Fire: E30, E60 or E120 classifications
Including Rigid and Flexible Structures
Radiated Heat: EW30
Reduction of 15kW/m² to EW30 classification
Smoke: Tested to EN1634-3
Fire: Tested to EN1634-1all in accordance with EN13501- 2,
EN15269.
Any internal application where fire compartmentation is required but is ideally suited for:
Retail Malls, Offices, Receptions / Foyers, Lift Lobbies / Lift Doors, Open-plan Private Residencies.
Electric operation is by means of a tubular motor suitable for connection to a 230-volt nominal single-phase supply with gravity failsafe closure in a fire condition.
A control panel is provided with the facility for connection of a normally closed volt free contact from the Client’s fire alarm system. A battery is included to prevent unwanted closing of the curtain in case of power failure.
The curtain will automatically descend upon receipt of the fire signal.
If the curtain system is to be used on an escape route, only local heat detection can be used. This can be accommodated by our operating controls.
Specially reinforced and coated fibre-glass material 0.7mm thick which is designed to withstand temperatures in excess of 1000 degrees C.
A steel bottom rail is attached to provide rigidity and act as a weight to assist closure.
Manufactured from galvanised steel and formed into a slimline profile which is prepared for bolting to the opening structure.
An integral sealing arrangement is incorporated to prevent the passage of smoke around the edges of the curtain.
The roller comprises a suitable diameter steel tube in which the tubular motor is fitted at one end and steel shafts / discs at the other.
Galvanised steel endplates are provided with integrated angles to simplify installation.
The roller is covered by a galvanised steel casing which also acts as a fire seal at the head complete with an integrated smoke baffle.viding an effective seal against the passage of flames and hot gases.
The curtain is supplied in a neutral grey colour with the side guides, bottom rail and coil casing supplied in a standard galvanised finish.
5000mm wide x 3000mm high
Curtain 0.78Kg/m² approx. Barrel / Casing 30Kg / m approx.
